Tank Washing Machines

Victor Marine’s Tank Washing Machines, marketed under the established brand name of Victor Pyrate, are of proven high quality and are efficient and robust.

Developing and manufacturing Tank Washing Equipment for over 60 years, Victor Marine has a wealth of knowledge and experience in providing tank cleaning solutions suitable for VLCC’s to smaller Product Tankers and Chemical Carriers.

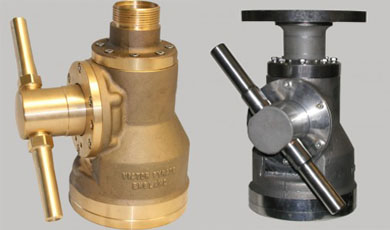

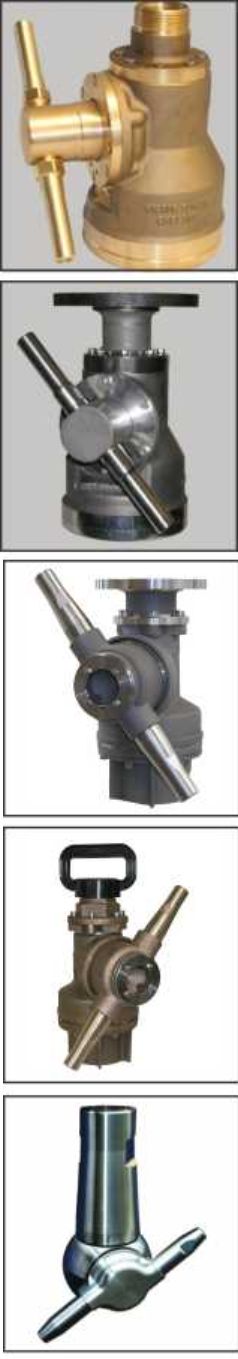

Victor Marine can offer portable and fixed twin nozzle and single nozzle tank washing machines which set a standard above the rest and include the following design features:

* Jet lengths from 9 to 38m
* Wash cycle times as low as 16mins
* A range of both programmable and pre-programmable machines
* Available in Bronze and Stainless Steel
* Machines capable of operating at a pressure as low as 5kg/cm²
* Mud cleaning machines with a “sealed for life” gear box
* Fully Type Approved by Class Societies

Victor Marine can design the ideal system by carrying out a Shadow Diagram study which will confirm the number, position and type of machine so as to provide the optimum tank cleaning solution.

As well as supplying Tank Washing Machines, Victor Marine can provide all the necessary ancillary equipment to operate the tank washing equipment.

_________________________________________________________________________________

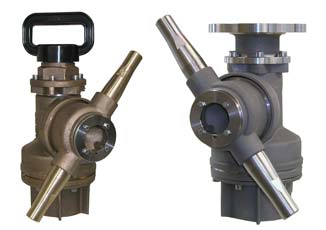

VP Minor

Pre-programmed Twin Nozzle VP Minor Tank Washing Machine.
The VP Minor is a pre-programmed twin nozzle Tank Washing Machine which is very simple in design and operation ensuring easy maintenance. The VP Minor can either be used for portable or fixed use on crude oil, multi-product or chemical tankers. The VP Minor is available in stainless steel and bronze and has a maximum jet length of 14.6m.

_________________________________________________________________________________

VP Major
Pre-programmed Twin Nozzle Tank Washing Machine.
The VP Major tank Washing Machine is a pre-programmed twin nozzle Tank Washing Machine which is very simple in design and operation ensuring easy maintenance. The VP Major can either be used for portable or fixed use on crude oil, multi product or chemical tankers. The VP Major is available in stainless steel and bronze and has a maximum jet length of 38m.

_________________________________________________________________________________

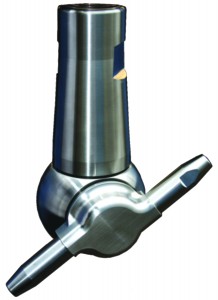

VP Minim

Pre-programmed Twin Nozzle Tank Washing Machine
The VP Minim is a pre-programmed twin nozzle Tank Washing Machine which is very simple in design and operation ensuring easy maintenance. The VP Minim can either be used for portable or fixed use on smaller product & chemical tankers. The VP Minim is available in stainless steel and has a maximum jet length of 13m.

_________________________________________________________________________________

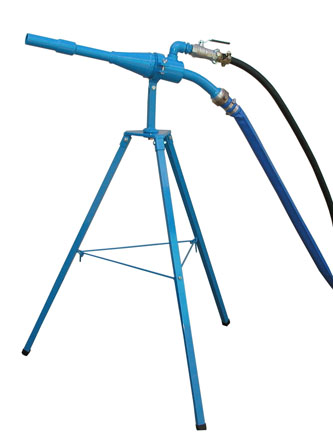

VP Watergun

The VP Watergun is a powerful water gun with effective jet lengths of up to 25m with a low recoil for rapid cleaning of decks and bulk cargo holds. Supplied complete with a tripod stand, the lightweight design is ideal for one-man operation.

_________________________________________________________________________________

Victor Marine offers Tank Washing ancillaries which are highly recommended to ensure longevity and less maintenance for the Oil Water Separators

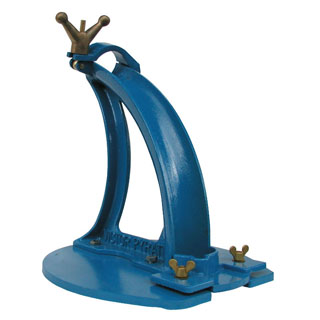

VP Hose Saddle

This lightweight aluminum alloy hose saddle (7kg) comprising of a deck plate, hose guide and positioning clamp is designed for easy handling of tank cleaning hoses and longevity of use.

A choice of base plate sizes is available or with a standard 318mm deck opening.

Epoxy coated for protection.

_________________________________________________________________________________

Victor Marine offers a range of tank washing hoses and couplings, offering a comprehensive selection of couplings from stock. Most hoses can be assembled and tested for dispatch within hours of an order being placed.

VP Heavy Duty Tank Washing Hose

VP Heavy Duty Tank Washing Hose is manufactured from a neoprene material with styrene butadiene rubber (SBR) liner reinforced with multiple rayon braids to ensure earthing continuity which is fully tested before despatch. Available in two sizes of 38mm and 52mm (1½” and 2″) ID from a minimum of 10m to a maximum length of 60m at multiples of 5m.

_________________________________________________________________________________

Available Connections

Victor Marine offers a full range of couplings to suit all our 1½” and 2″ ID hoses:
BSP Thread, Camlocks, Stortz, Nakajima, Butterworth, John Morris and many more.
Various double ended, Y-pieces and hot water line adaptors are available to ensure total connectivity.
Most connections are available from stock.

_________________________________________________________________________________

Hose Spanner

Victor Marine offer hose spanners to suit most couplings.
